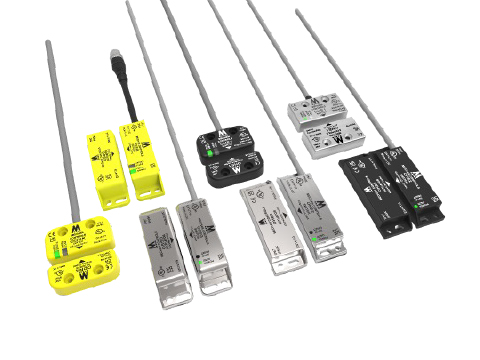

OSSD safety switches from Mechan Controls

All pre-wired OSSD switches have a 2A capability, therefore would not need to go to a safety relay and can go straight to a contactor. Features include:

• Uniquely coded RFID (yellow) or coded magnetic (black)
• OSSD dual-channel outputs - reach CAT4, SIL3, PL-e
• Connect up to 30 switches in series while maintaining full PL-e
• IP67 and IP69K protection - fully sealed for washdown and harsh environments
• No mechanical parts - ideal for high-cycle, tough conditions
• External Device Monitoring (EDM) - monitor safety relays or contactors
• 316 Stainless steel versions available in OHE1, OHE2 and OSSG with IP69K protection

There are a number of good reasons to choose O-Type OSSD switches:

• Maintain Performance level E across multiple switches in series
• Ideal for food, chemical, and industrial applications
• Fully sealed for washdown and extreme environments
• Eliminates the need for a separate safety monitoring device

Other features and benefits include:

• Advanced LED Guard Status Indicator; External Device Monitoring (EDM)
• Coded Magnetic or 4 Billion Code RFID
• Adheres to ISO EN 14119; IP67 and IP69K Tested; CAT4, PL-e, SIL3
• Compatible with most safety relays
• Connect up to 30 switches in series while maintaining full safety compliance; CAT4, SIL3, PL-e
