Double-door safety switches

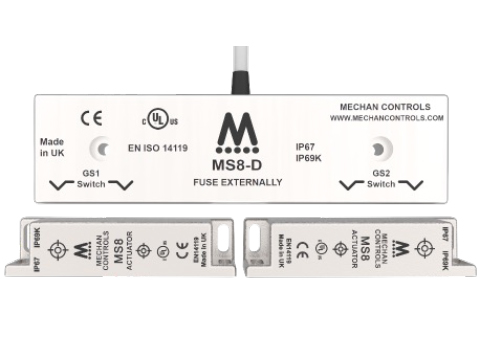

The MS8-D is constructed from ABS plastic or 316 stainless steel, and is IP67 and IP69K tested for the harshest environment. It offers a 1A safety output rating with pre-wired options. Tolerant to door misalignment, it is ideal for hygienic or outdoor applications. It provides two operating faces on the actuators.

The HED and HE2-D enable monitoring of two gates simultaneously with one coded magnetic switch. Both doors must be closed for safety outputs to engage 2 x N/O plus 1 x N/C solid-state outputs. Built-in LED indication provides easy fault diagnostics, and the design reduces wiring and control panel complexity. Ideal for machine builders and compact systems, the safety switches are constructed in ABS plastic or 361 stainless steel.

The designs are cULus and TUV approved.
